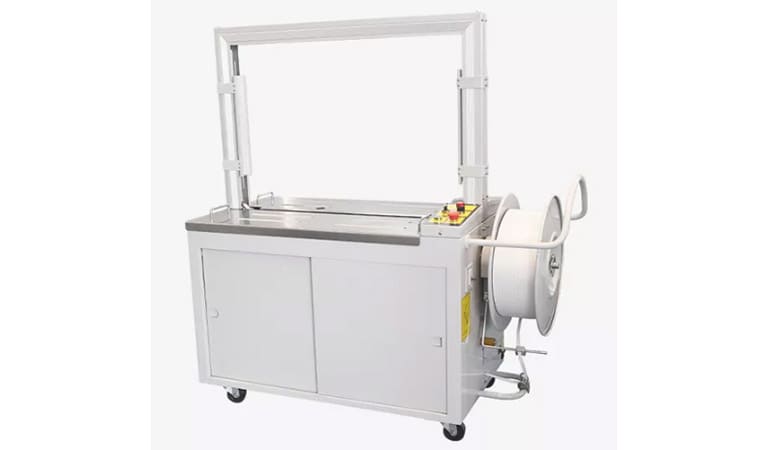

KZ-8060D Automatic Strapping Machine

---

Streamline Packaging Operations with Ease: KZ-8060D Automatic Strapping Machine by TOTAL PLAST, Bangalore

The HUALIAN BRAND KZ-8060D Automatic Strapping Machine stands as a testament to unparalleled quality in the realm of packaging automation tools. Engineered for seamless integration into any packaging line, this machine offers both fully and semi-automatic versions to cater to diverse operational needs.

The KZW series of automatic strapping machines, including the KZDW series, is designed for applications where objects vary in size and exhibit irregular shapes. Capable of achieving unmanned strapping when combined with a power conveyor, these machines utilize a power belt tabletop and access transmission mechanism for easy maintenance. The KZW series finds wide-ranging applications in strapping various packages across different industries, offering the flexibility of single-unit operation or integration into a production line.

The KZ-8060D, an entry-level arch automatic strapping machine, exemplifies exceptional build quality, making it ideal for high-volume applications with packages of variable shapes and weights. Its user-friendly design incorporates automatic tensioning, sealing, and cutting features, producing up to 27 straps per minute. This machine accepts 9-15mm polypropylene/plastic strapping with automatic feed and provides a maximum tension force of 70kg, manually adjustable externally (minimum 10kg). With four castors and adjustable feet for uneven floors, the machine ensures stability. The arch size is 80 x 60cm (height x width), and the strapping coil is externally mounted for easy access and changeover. The quick 2.5-second strapping cycle can be activated through the control panel, an electrical footswitch, or a table pressure switch, ensuring versatile, fast, and easy operation. The machine incorporates a short feed sensor for efficient coil changeover, and the tensioning and sealing head is robust for durability and reliability. Weighing 240kg and measuring 140 x 62 x 147 cm (width x depth x height), this automatic strapping machine exemplifies efficiency and precision in the packaging process.

Features

---

Strap Feed

Very easy and accessible strap feed for loading, includes a reel brake for ultimate control.

Control Panel

Simple to use, includes on/off switch, strap feed timer, tension control and a feed/home switch.

Compact Mechanics

This compact machine, which includes electronic tension control, is easy to maintain while providing safe and reliable functionality.

Specification

MODEL	KZ-8060/D
Voltage (V/Hz)	AC 380/50 220/60 3Phase
Power (W)	1000
Max. Strapping Size (L×H) (mm)	800*600
Strapping Speed (sec/cycle)	≤2.5
Strapping Force (V/hz) (N)	25-700 (Adjustable)
Height of Table (mm)	750
Width of Strap Used (mm)	Plastic strap 9-15, thickness 0.5-1.1
External Dimensions (L×W× H)(mm)	1400×620×1470
Net  Weight (kg)	240
Max.Loading Weight(kg)	30

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
